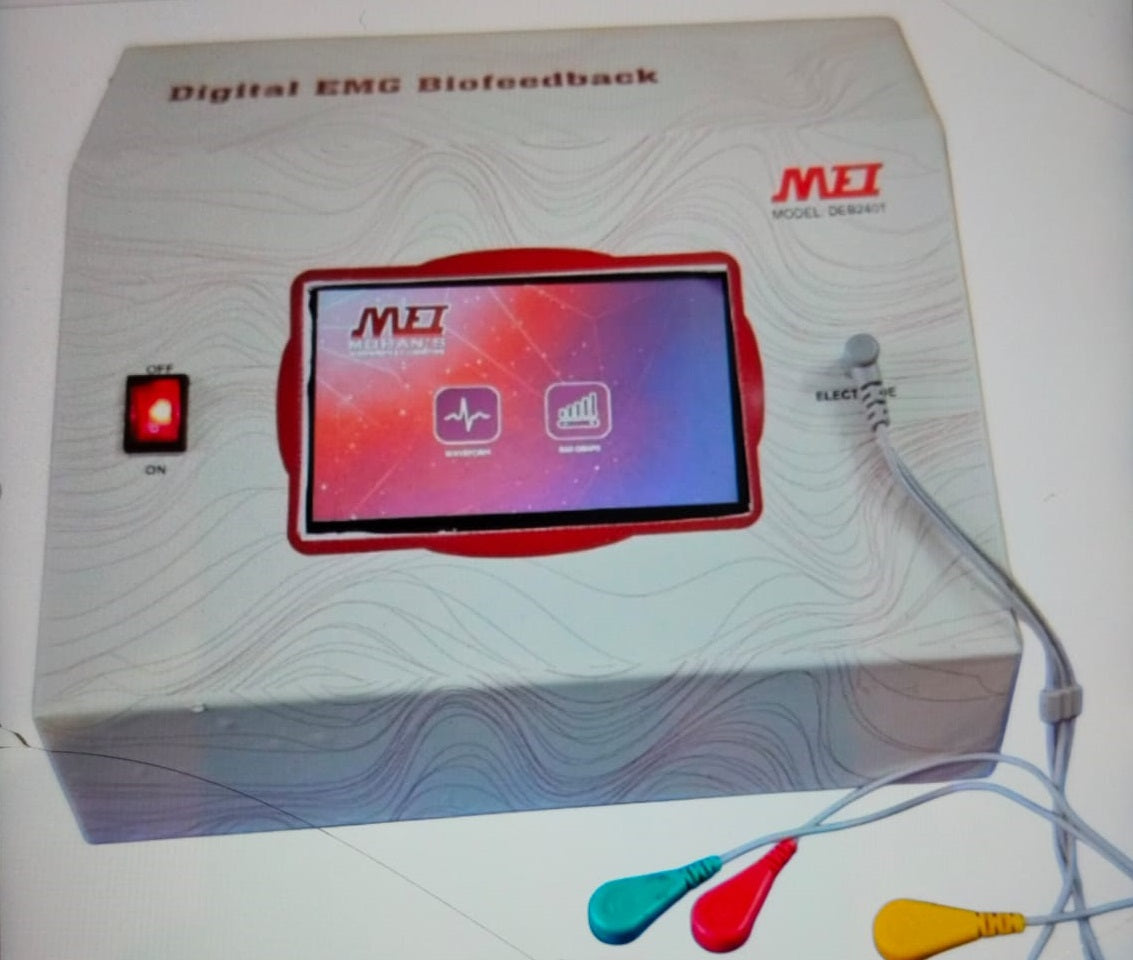

Digital EMG BioFeedback

Specification for Digital EMG Biofeedback System

Overview:

The Digital EMG Biofeedback System is designed to monitor and provide real-time feedback on muscle activity through surface electromyography (sEMG). The system includes a capacitive touch HMI (Human-Machine Interface) that displays real-time line and bar graphs of the EMG signals. Additionally, the system interfaces with a computer where users can view real-time graphs and save the data against patient details for further analysis.

Key Features:

• Surface EMG Measurement: The system captures muscle activity by measuring the action potentials generated by muscle fibers during contraction.
• Real-time Graph Display: The HMI displays real-time EMG data as a line graph or a bar graph, providing immediate visual feedback.
• Capacitive Touch Interface: The HMI is equipped with a capacitive touch screen, allowing for easy interaction and control of the display.
• Computer Interface: The system connects to a computer, where users can view real- time EMG data and save it along with patient details for record-keeping and analysis.
• Data Logging: EMG data can be logged and saved on the computer, allowing for detailed analysis and tracking of patient progress over time.
• User-Friendly Design: The system is designed for ease of use, with intuitive controls and a clear display of information.

 Technical Specifications:

• Sensor Type: High-sensitivity surface EMG sensors for accurate readings
• Signal Processing: 50Hz notch filter, envelope detection, real-time averaging
• Display: Capacitive touch HMI with real-time line and bar graphs
• Computer Interface: USB or serial connection for real-time data visualization & logging
• Compatibility: Windows- based software compatible with most operating systems
• Power Supply: 230V/50Hz AC
• Accessories: Electrodes, cables, gel & user manual
• Dimensions: 23.5*20.5*12 cm
• Weight: 2.5KG

 Benefits:

• Improved recovery rates
• Objective progress tracking
• Increased patient engagement
• Cost-effective solution

Note: Computer/laptop is not included

Important: Consult a medical professional or healthcare provider if you seek medical advice, diagnoses, or treatment. This device should be only used in a hospital or clinic under medical supervision of licenced Psychiatrist/Neurologist/ENT/Physical Therapist.
